Products / palett racks / single-space systems

Single-space system Normapal

• Primarily for picking from lattice boxes, also suited for other containers and pallets.
• For pallets and container of equal width
• More favorable weigth distribution (upright load) compared to multi-space racks

Design examples

One lattice box or other carrier per pair of depth supports.

Single space rack for pool-lattice box pallet DIN 15 155 or Euro-pool-pallet DIN 15 146,

Depth supports w. alignment. The rear stop prevents goods from falling.

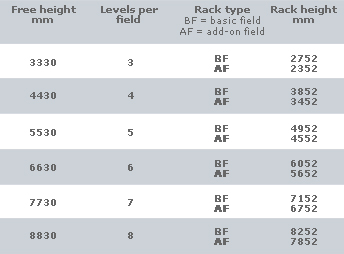

Height- and feed suggestions for 5 or 7 levels

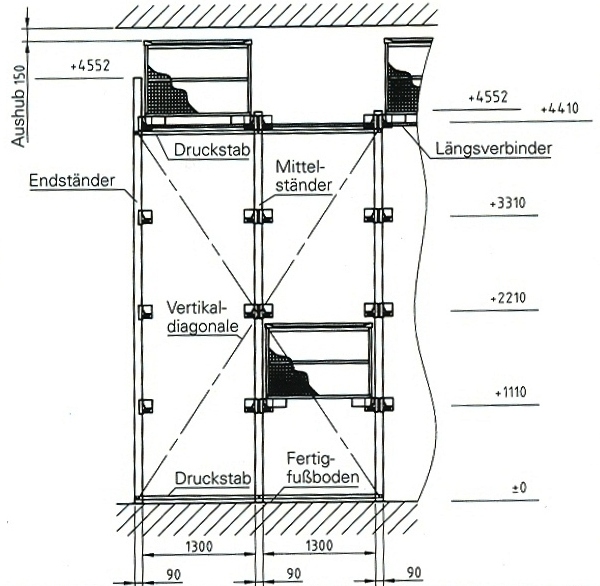

5 storage level

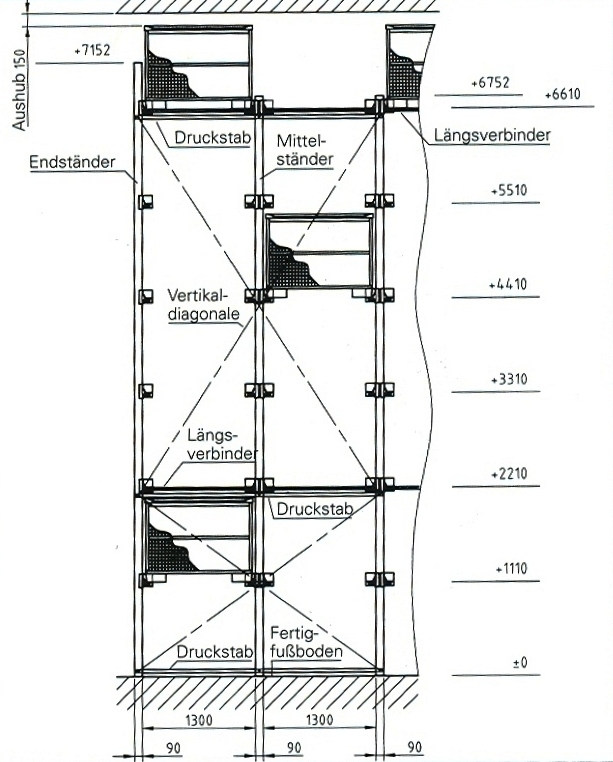

7 storage level
