Structural steel systems

Take advantage of your last space reserves in your warehouse or production and win additional room. With a modular GEMAC structural steel platform you build above existing areas and use your space right up to the roof.

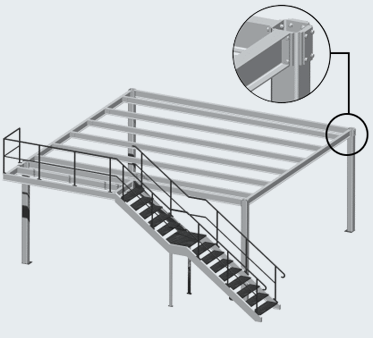

GEMAC platform design

Planning and fabrication according to customer requirements:

• System statics according to the latest technical regulations (DIN 18 801)
• Upright spacing up to 6000 mm (standard)
• Maximum loading 300 or 500 kg/m² (standard)
• Rigid connections, hot rolled beams and platform supports allow a design without troublesome vertical cross-bracing.
• Beam deflection max. L/300
• Certified static upon request, rugged epoxy-coating
• Bolted design for easy modifications
• Stairs and landings available in diverse designs

Platform flooring

• Standard: particleboard 38 mm thick, with tongue and groove
• System flooring: additional heat and sound insulation

Applications

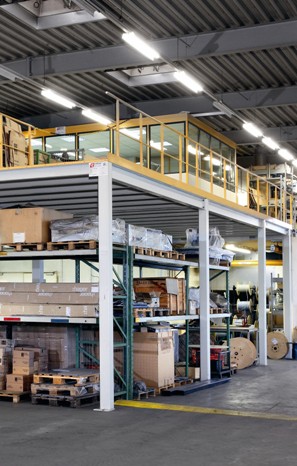

• Build above production, assembly or storage areas, platform for multi-purpose offices with ground and / or top levels

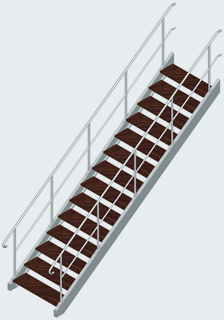

GEMAC system staircase - we meet building codes

Adapted to your requirements / existing circumstances and the applicable regulations:

• Ergonomical solutions
• Usable stairway width 1000 mm
• Sure-footed, anti-skid design
• Alternative step types

• Beech-plywood
• Steel grating
• Anti-slip aluminum plate

• Safety railing

• Handrail grip sure
• Handrail 1 1/4 " tubing, height 1000 mm
• Knee rail 1/2" tubing, height 500 mm

• Handrail joints secured by internal connectors
• No welding required at the job site
